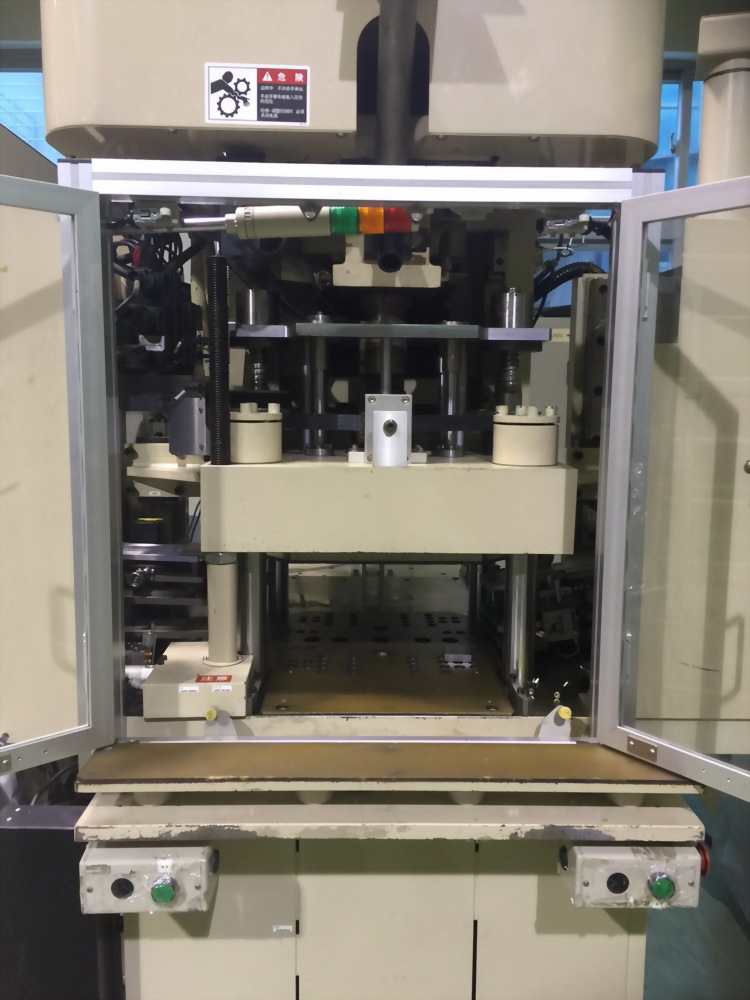

山城精機 立式射出成型機

理論射出體積Theoretical injection capacity:14.5 cm3
螺桿徑Screw diameter:16mm
射出壓力Injection pressure:278Mpa
射出速度Injection speed:425mm/sec
射出行程Max. injection stroke:72mm
射出率（理論值）Injection flow rate(theoretical):85cm3/sec
可塑化量Plasticizing capacity:8kg/h
螺桿轉速Max. screw speed:480rpm
開距Max. mold closing stroke:300mm
最小模厚Min. mold height:200mm
Daylight:500mm
